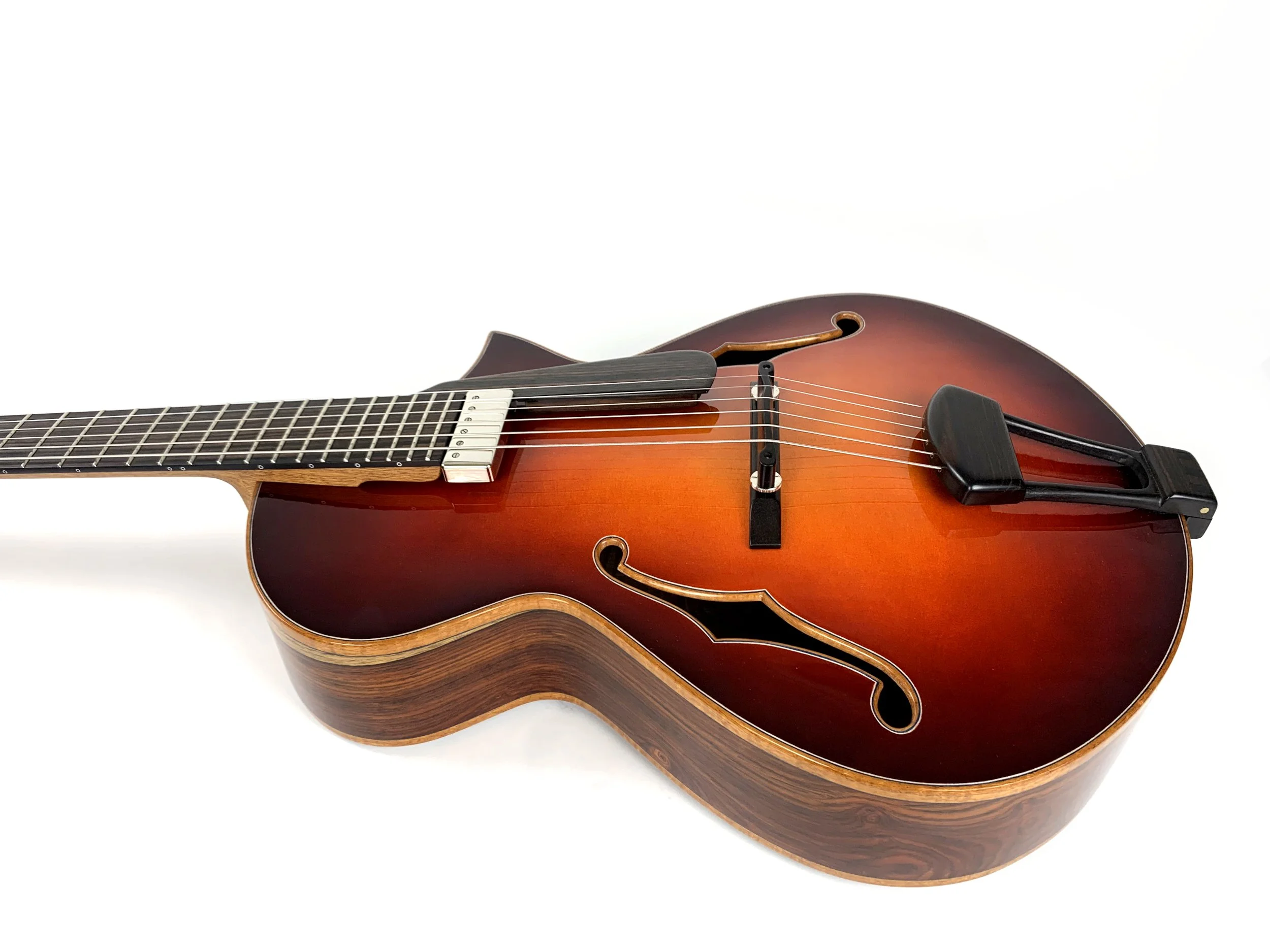

15” Archtop with Cocobolo Sides
Materials
Top: Sitka Spruce
Back: Figured Big Leaf Maple Sides : Cocobolo
Neck: Honduran Mahogany
*Carbon Fiber Reinforced with Hott Pink Dual Action Truss Rod*
Fretboard: Macassar Ebony
Binding: Figured Mahogany
Purfling: Blue/White Maple Veneer
Hinged Tailpiece: West African Ebony with Macassar Ebony
(Carbon Fiber laminated)
Bridge & Saddle : West African Ebony
Pickguard: Macassar Ebony
Peghead Overlay: Macassar Ebony
Peghead Underlay: Cocobolo
MW Logo Inlay: Sterling Silver inlay by Larry Robinson
Tuners: Chrome Gotoh 510 minis with Ebony Schaller Button
Body Finish: Cocobolo Sunburst with Nitrocellulose Lacquer
Neck Finish: Polyurethane Oil
Position Markers: Aluminum Tubing
Pickup: Chrome “Johnny Smith” Lollar Humbucker (Floating) Controls: Volume and Tone Knob (500K Audio Taper)
Specs
Florentine Cutaway
Lower Bout Width: 15”
Body Depth: 3.375”
Scale Length: 24.9”
Nut Width: 1.75”
String Spacing at Bridge: 2.25”
Fretboard Radius: 14”
Weight: 5lbs 2oz

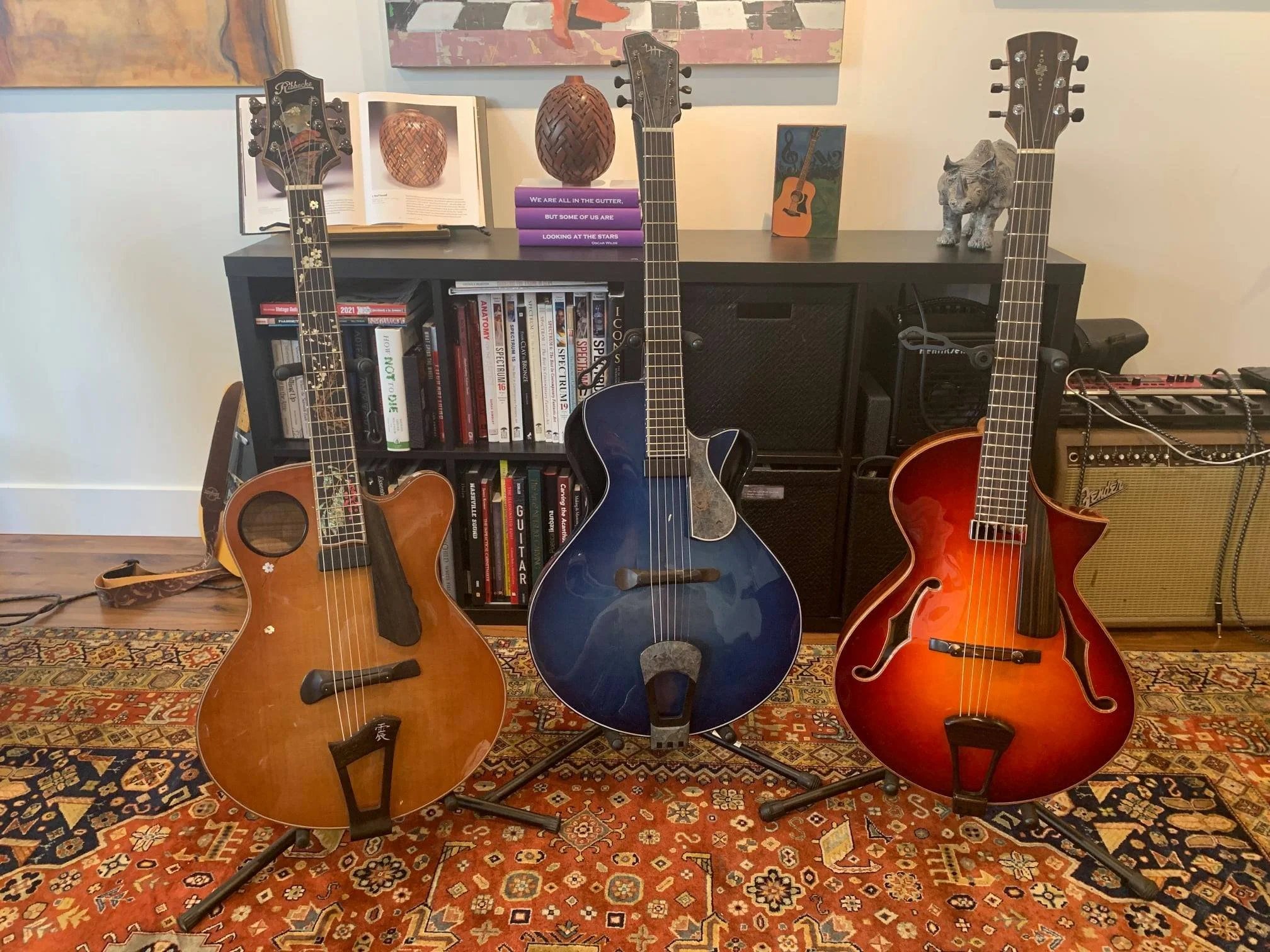

The Trifecta is complete! Two apprentices and their mentor.
Left to right; Ribbecke Guitar, LHT Guitar, Maegen Wells Guitar
